FW Marine IP66 Battery Range
The FW Marine IP66 Battery Range features enhanced safety, smart connectivity and a clean front-access design. The range includes 52V 10/8kWh, 52V 16/13kWh and 96V 30kWh battery models, with support for high-voltage marine energy storage solutions.

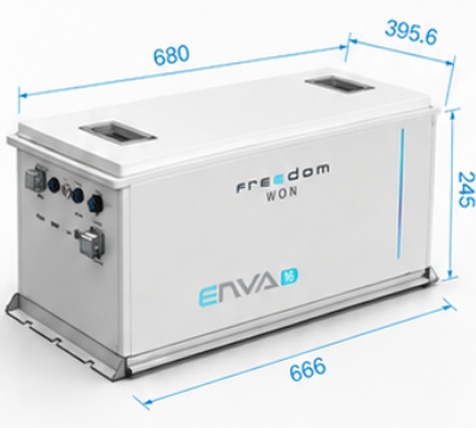

52V 10/8kWh
Featuring larger 205Ah cells, the 52V 10/8kWh model is designed for rugged marine energy storage.
Features
- 51.2V 205Ah (TNB6F146)
- IP66 enclosure rating
- Embedded aerosol fire suppression
- All cabling and communications on the front side
52V 16/13kWh
Featuring larger 314Ah cells, the 52V 16/13kWh model combines front-access design with enhanced connectivity.
Features
- 51.2V 314Ah (TNB6F147)
- Quick-connect DC cables
- Bluetooth & Wi-Fi connectivity with the new FW phone app for local real-time data
- Retains Freedom Won remote portal for internet-connected systems
96V 30kWh
The new 96V 30kWh model expands the FW Marine IP66 Battery Range with higher-capacity marine energy storage.
Features
- 96V 314Ah (TNB6F148)
High-Voltage Marine Solutions
800V solutions supported by liquid-cooled SOLVA AC261 or DC261 models.
Features
- Operating range: 728–932V
- Nominal voltage: 813V
- AC261: Embedded 125kW PCS
- DC261: External Sinexcel PWS1-160M or Solis 125kW hybrid inverter
